Mid West Pump (90) Ltd. Rebuilt Equipment - Gasoline and Diesel Pumps and Dispensers.

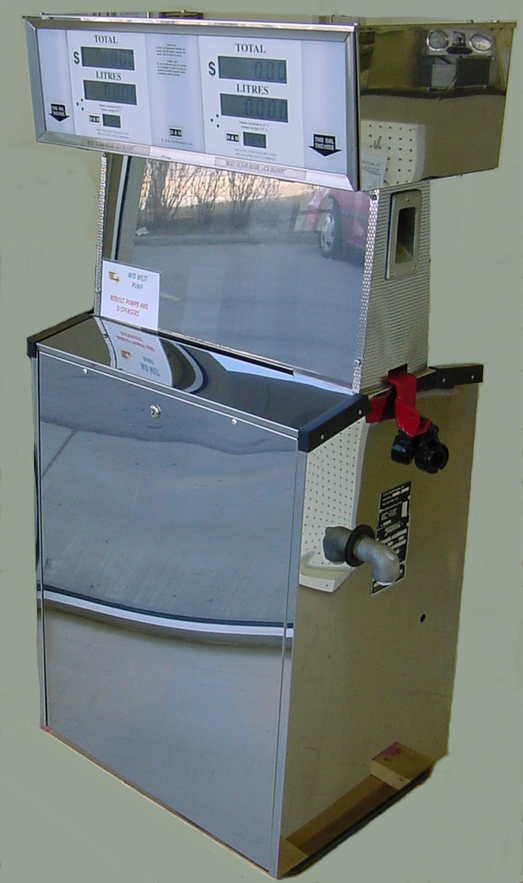

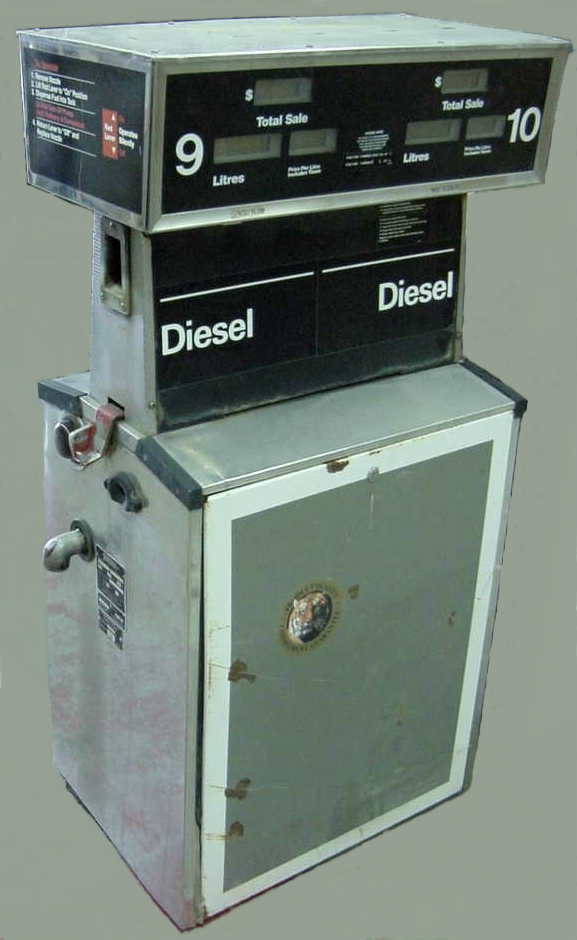

Before Rebuild	After Rebuild
•Not Stand alone requires 98 box in Building to Operate	•Stand Alone or Serial Communication with New Measurement Technology International Ltd electronics
•Non Back Lit LCD Displays	•Back Lit LCD Cold Temperature Displays
•Scuffed and Rusting Panels	•New Stainless Steel Paneling (Painted Doors available
	•Automatic Temperature Compensation and Electronic Calibration;

Mid West Pump (90) Ltd Rebuilt Pumps and Dispensers

For stock and pricing contact our Mark Thompson at markt@npdl.com

---

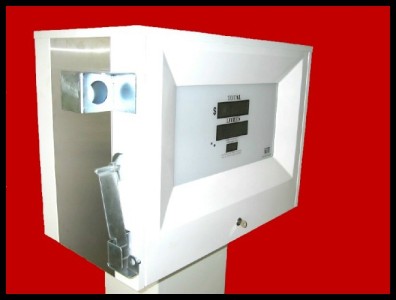

MTI 190 Mini Regular (13 to 90 LPM) Speed Dispenser with EL6.0 Register

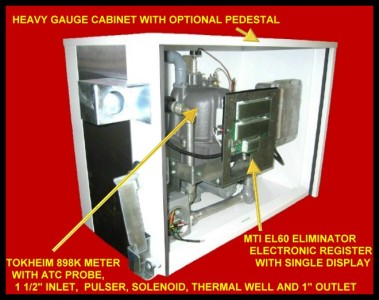

MTI 190 Regular Speed Pedestal Mount and Internals

Description

A quality, heavy duty, Mini Dispenser with single display, retail sales capability, including ATC and electronic calibration.

Features

• The new MTI Eliminator 6.0 Register. (See details above)

• Quality PMP Remanufactured Tokheim 898K Meter. The Tokheim 898K is noted in the industry for its accuracy, reliability and durability. The meters are remanufactured by PMP Corporation to exacting standards.

• The housing is made from heavy gauge steel, powder coated in the color of your choice, with stainless steel side trim.

• The cabinet can be mounted in a variety of configurations, including on an optional pedestal or service station dispenser base.

• The cabinet includes a heavy duty reset handle and nozzle holder.

• The Dispenser is equipped with a standard 1" single stage solenoid or it can be equipped with an optional 1" two stage solenoid for preset capability.

• An optional "Customer Preset" Keypad is available.

Specifications

Input Voltage

110/220 VAC, 50-60 Hz, .2/.1A

Motor Control Output

12A@220 VAC 3/4 HP

Solenoid Control

2A, 220 VAC

Handle Switch

5A, 220 VAC

Inlet

1 1/2" FNPT Meter Inlet

Outlet

1" FNPT Outlet

Electrical Approval

CSA Approved

Weights and Measures Approval

Holds Measurement Canada Device Type approval #AV-2377 for approved measuring devices. The meter is approved in Canada for a flow rate of 13 - 90 LPM.

Download a Brochure

---

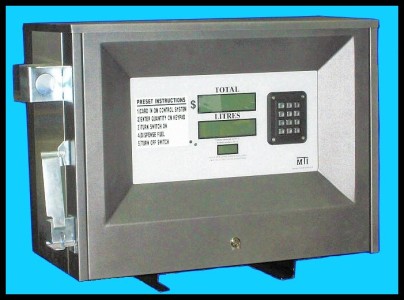

MTI 190MS Mini Medium (15 to 150 LPM) Speed Dispenser with EL6.0 Register

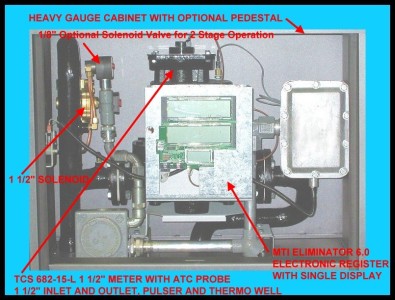

MTI 190 Medium Speed Shelf Mount and Internals

Description

A quality, heavy duty, Mini Dispenser with single display, retail sales capability, including ATC and electronic calibration.

Features

•The new MTI Eliminator 6.0 Register. (See details above)

•New TCS (Total Control Systems) Model #682-15-L 1 1/2" Positive Displacement Meter. this reciprocating 3 piston positive displacement meter is capable of 150 PSI (10.5 BAR) maximum working pressures at temperatures between -28.9°C and 93.3°C (-20.0°F to 200°F).

•The housing is made from heavy gauge steel, powder coated in the color of your choice, with stainless steel side trim.

•The cabinet can be mounted in a variety of configurations, including on an optional pedestal or service station dispenser base.

•The cabinet includes a heavy duty reset handle and nozzle holder.

•The Dispenser is equipped with a standard 1 1/2" single stage solenoid or it can be equipped with an optional 1 1/2" two stage solenoid for preset capability.

•An optional "Customer Preset" Keypad is available.

Specifications

Input Voltage

110/220 VAC, 50-60 Hz, .2/.1A

Motor Control Output

12A@220 VAC 3/4 HP

Solenoid Control

2A, 220 VAC

Handle Switch

5A, 220 VAC

Inlet

1 1/2" FNPT Meter Inlet

Outlet

1 1/2" FNPT Outlet

Electrical Approval

CSA Approved

Weights and Measures Approval

Holds Measurement Canada Device Type approval #AV-2377 for approved measuring devices. The meter is approved in Canada for a flow rate of 15 - 150 LPM.

Download a Brochure

Download Mini Dispenser Order Sheet "Here"
