Electrical and Anti Static Protection
Electrical and Anti Static Protection

Anti-Static Grounding and Bonding Systems

Ametek Static Ground Reels

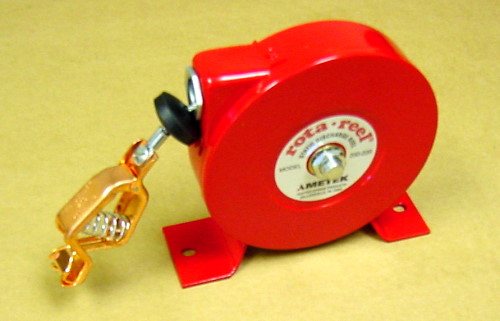

Amtek 200-20R
200-20R Spring Rewind

20 feet 3/32 inch diameter, 7 x 7 galvanized carbon steel cable meeting MIL spec W83420

100 amp alligator-type solid copper Mueller 21C, 4 inch length, 1-1/16 inch jaw opening terminal

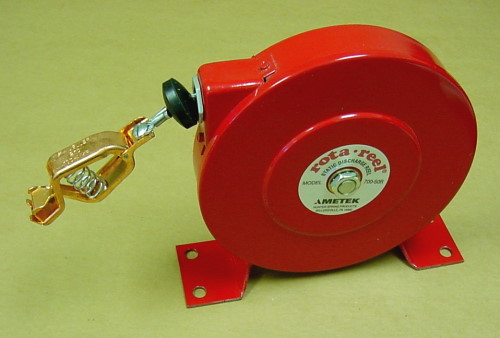

Amtek 700-50R
700-50R Spring Rewind

50 feet Clear PVC Coated 3/32 inch diameter, coated to 1/8 inch outside diameter cable

100 amp alligator-type solid copper Mueller 21C, 4 inch length, 1-1/16 inch jaw opening terminal

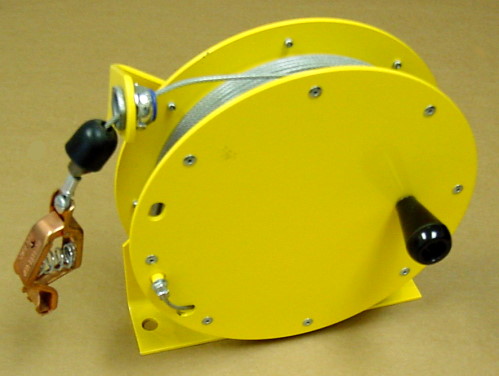

Amtek ML2930-MC50
ML2930-MC50 Hand Wind Reel

50 feet 3/32 inch diameter, 7 x 7 galvanized carbon steel cable meeting MIL spec W83420

100 amp alligator-type solid copper Mueller 21C, 4 inch length, 1-1/16 inch jaw opening terminal

Static Grounding Equipment

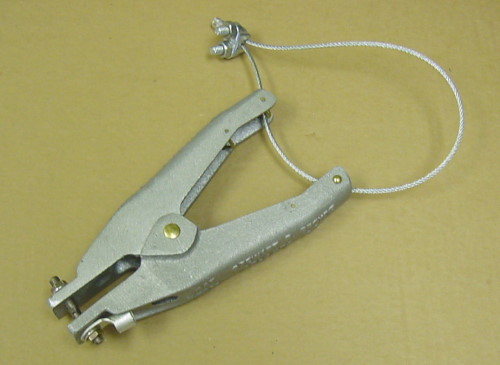

GAT-P
GAT-P Aluminum Hand Clamp

Three stainless steel points (one on one side, two on the other side).

Equipped with a quick release harness, so that should the vehicle depart before the clamp has been released, tension on the attached harness will force the clamp to be released automatically.

Large plier-type clamp

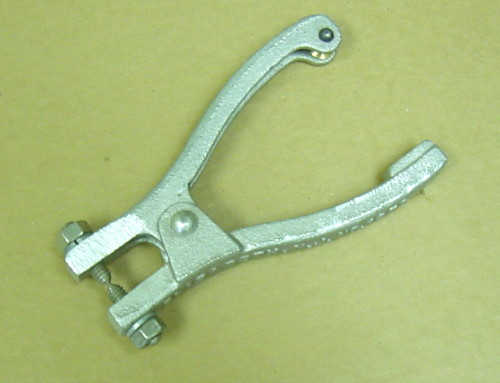

REB
REB Aluminum Hand Clamp

Two stainless steel points.

55 lb spring pressure

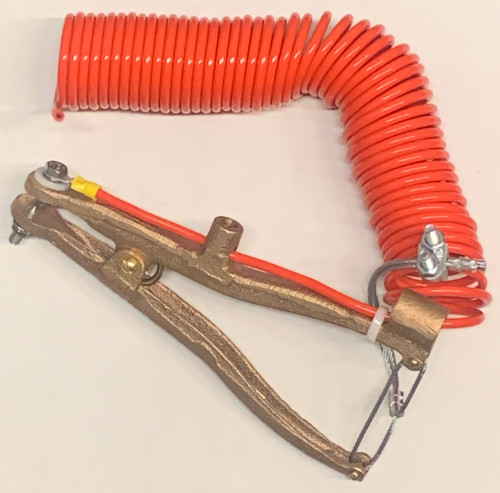

LR-10+10
LR-10+10 Self-Retracting Grounding Cable

20 feet of 1/8 inch coiled cable only, plated steel, orange PVC coated to 3/16 inch O.D.

LR-20
LR-20 Self-Retracting Grounding Cable

20 feet of 3/16 inch coiled cable only, 2 foot straight section, plated steel, orange PVC coated to 1/4 inch O.D.

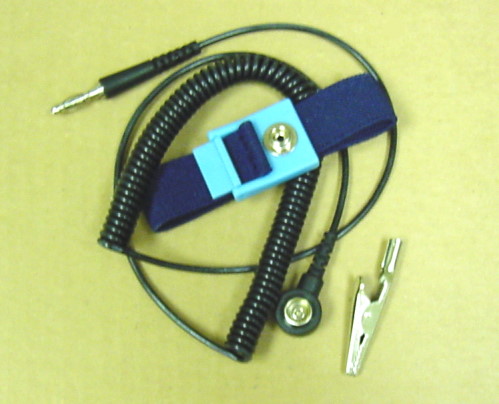

EW2000
EW2000 Personal Adjustable Woven Wrist Strap

6 foot coil cord, 7mm snap, 1 megohm resistor.

Comes with banana plug and removable aliigator clip
