Franklin Electric Replacement Electric Motors
Franklin Electric Replacement Electric Motors

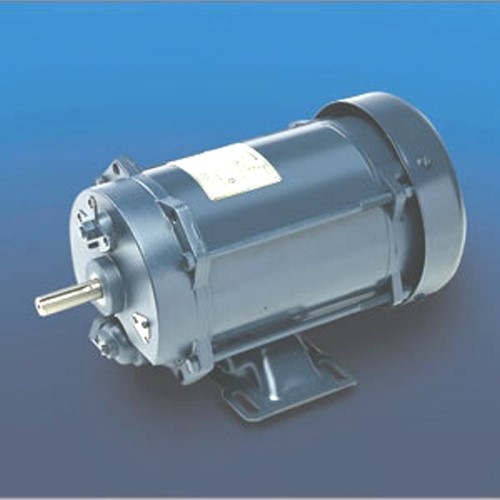

Franklin Electric 56 Frame Reversible Motors

FE 56 Frame Motor
56 Frame for all makes of Pumps - Note! these are fan cooled and may not fit if your motor has no fan.
Electrical Specifications
Capacitor Start
Continuous Duty
40° C Ambient Temperature
Class B Insulation
Automatic Reset Thermal Protection
Reversible Rotation
Centrifugal Starting Switch
Mechanical Specifications
56 Frame
Rigid Base Mount
Ball Bearings
Carbon Steel Shaft
Class 1 Group D Gasoline Vapor Atmosphere
Voltage Selection Switch (High or Low)
ON-OFF Line Switch (Use Optionally)
1/3, 1/2, 3/4 or 1 Horse Power
TEFC except for 1/3 which is TENV

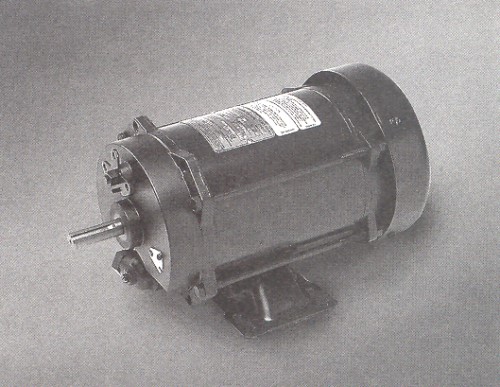

Franklin Electric 61 Frame CW or CCW Rotation Motors

FE 61 Frame Motor

61 Frame for Gilbarco and Tokheim Pumps
Electrical Specifications
Capacitor Start
Continuous Duty
40° C Ambient Temperature
Class B Insulation
Automatic Reset Thermal Protection
CW or CCW Rotation
Centrifugal Starting Switch
Mechanical Specifications
61 Frame
Rigid Base Mount
Ball Bearings
Carbon Steel Shaft
Class 1 Group D Gasoline Vapor Atmosphere
Voltage Selection Switch (High or Low
1/2 or 3/4 Horse Power
TEFC
