Leak Detectors and related Equipment
Leak Detectors and related Equipment

Vaporless Manufacturing,Inc Leak Detectors Models 99/LD2000, 99/LD2200,99/LD3000

99/LD-2000 Leak Detector99/LD-2200 Leak Detector99/LD-3000 Leak Detector

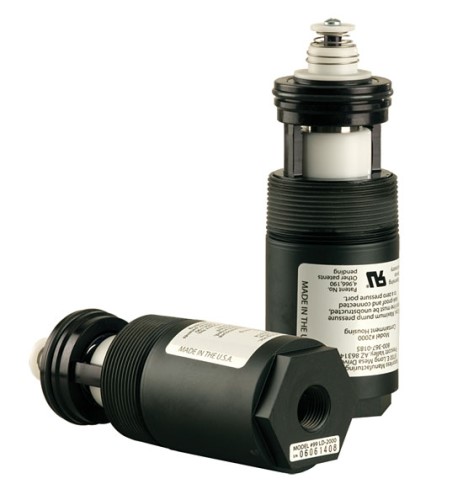

99/LD2000
• Available for Gasoline, Diesel, Alcohols, Bio diesel, Aviation
• For any Pump
• Electronic Interface Available
• Longest length Pipeline System
• Largest Volume Pipeline System
• Integrated Check Valve / Pressure Relief
• Field Adjustable Leak Threshold

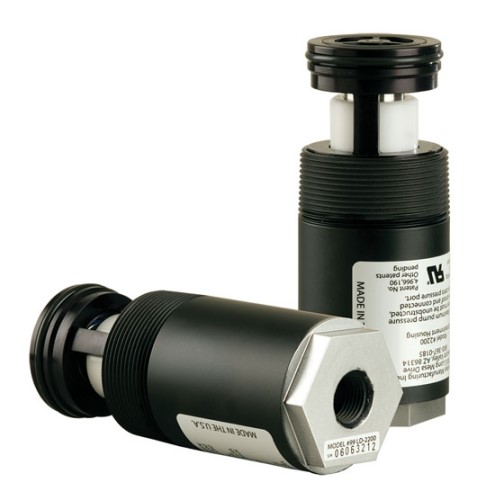

99/LD2200
• Available for Gasoline, Diesel, Alcohols, Bio diesel, Aviation
• For any Pump
• Longest length Pipeline System
• Largest Volume Pipeline System
• Field Adjustable Leak Threshold

99/LD3000 3"
• Available for Gasoline, Diesel, Alcohols, Bio diesel, Aviation
• For any Pump
• Combined Rigid and Flexible Pipe System up to 502 Gallons
• Rigid Pipe only up to 406 Gallons
• Longest length Pipeline System
• Smallest Profile
• Integrated Check Valve / Pressure Relief
• Field Adjustable Leak Threshold

Vaporless Manufacturing,Inc Leak Detector Testers Models LDT-890 and LDT-890AF

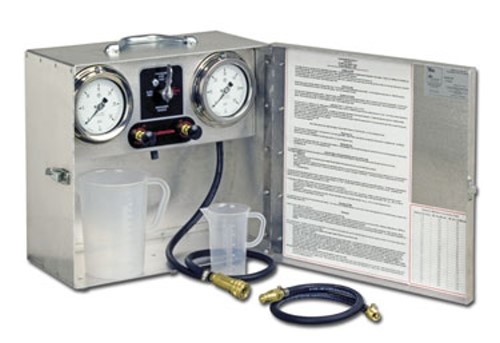

LDT-890 Leak Detector Tester
• Factory Certification for Catastrophic Annual Testing and Troubleshooting
• LDT-890\AF for Alcohols, Bio diesel and some chemical applications
• Ensures regulatory compliance
• Performs 3 GPH @ 10 PSI
• Precision or Functional Test
• Performs System Diagnostics; trouble shooting
• Accurate Viscosity adjusted leak rate

Vaporless Manufacturing,Inc Automatic Repressurization Module Model ARM-4073

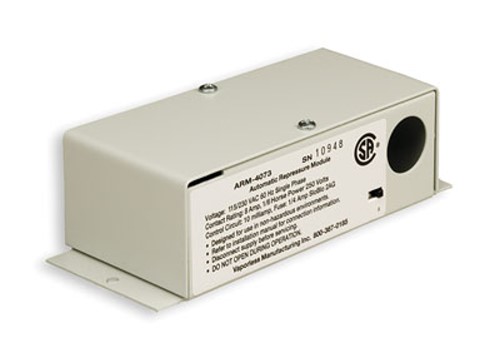

ARM-4073 Automatic Repressurization Module
• Works with any 99/LD2000 or 99/LD3000 VMI Leak Detector
• LDT-890\AF for Alcohols, Bio diesel and some chemical applications
• All Submersible Pumps
• Compensates for fixed solenoid delays
• Automatic re pressurization at daily start up

Vaporless Manufacturing,Inc Fuel Transfer Controllers Models AST-4010 and AST-4012

AST4010 Fuel Transfer Controller
• AST-4010 Single Tank or AST-4012 Dual Tank
• High Level Warning - Shut Down and Alarm
• High Level Alarm - SHut Down and Lockout
• No Hydraulic Hammer
• No Valve restrictions
• Regulator compliance - empty transfer hoses
• Controls motors up to 25 HP
• Alarm Circuit / Alarm Relays
• Enclosure meets or exceeds U.L. Class 1, Group D Hazardous Environment Criteria

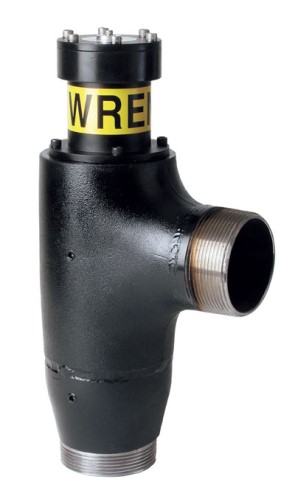

Vaporless Manufacturing,Inc Overfill Protection Valves Models OFP-2/1, OFP-2/2, OFP-3/1 and OFP-3/2

OFP-2/1 Overfill Protection ValveOFP-2/2 Overfill Protection Valve
OFP-3/1 Overfill Protection ValveOFP-3/2
• For Above Ground Storage Tanks
• Meets Uniform Fire Code
• Meets NFPA code 30A requirements for complete shutdown @ 98% fuel level
• Model 2\1: One 4" tank opening required. Shutdown Valve and Pilot Valve mount on a 4" x 2" male pipe thread bushing (provided). For use with 2" drop tube only

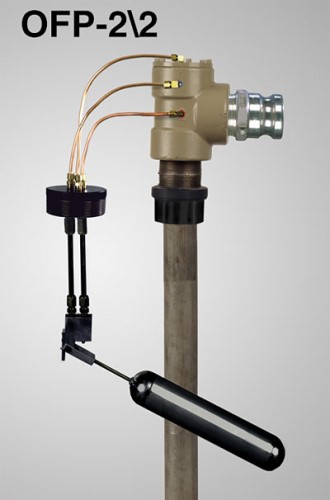

• Model 2\2: Requires two tank openings; one opening may be 2" or 3" and the second opening should be 4" (two 4" openings are acceptable). 4" pipe thread bushing provided. Requires a minimum of one 2" and one 4" opening

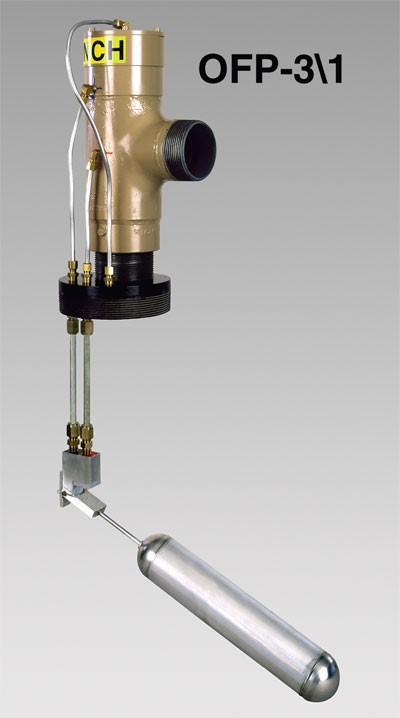

• MODEL 3\1: One six inch tank opening required, OFP Valve and Pilot Valve mount on 6" male pipe thread Bushing provided. For use with 3" drop tube only

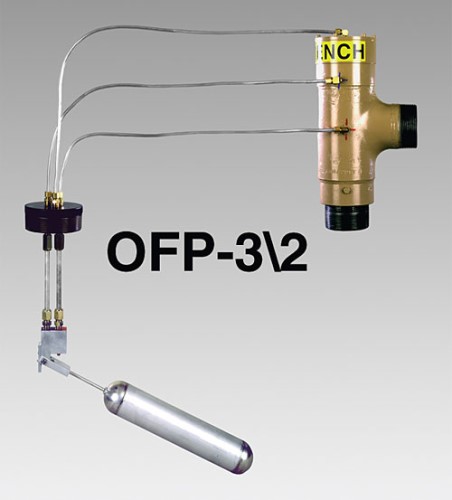

• MODEL 3\2: Requires two tank bung's. Combinations of : 2 - 4" bung's or 1 - 3" bung and 1 - 4" bung. Consult factory for other combination or custom configurations. One 4" male NPT Bushing provided to install Pilot Valve and to vent OFP Valve. For use with 3" drop tube only
